| MOQ: | 1000 |
| Price: | To be negotiated |
| Standard Packaging: | box |
| Delivery Period: | 4 weeks |
| Payment Method: | T/T |
| Supply Capacity: | 20000pcs per month |

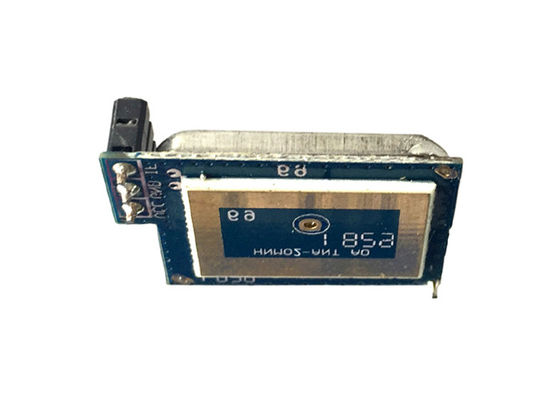

Microwave motion sensor module HNM02
In some cases, customers don't want to use the standard / finished sensor product, they prefer to design and produce their own sensor controls to fit better for their demands and bring more added values to their fixtures, at the same time save cost deeply. This antenna module is just for you to do that as the crucial component. For customers who have enough R&D competence to integrate such antenna module, this is definitely the most cost efficient and flexible solution to develop their own sensor product ranges.
Quick Details:
1. Cost efficient
2. Ultra-small size
3. Ultra-low current consumption
Size:
Features:
| 1 | Super compact size. |
| 2 | 5.8GHz C-band miniature transceiver. |
| 3 |
Patch antenna, antenna gain: 3 dBi. |
| 4 | Receiver bandwidth: 1Hz ~ 2KHz. |
| 5 | Output power 6dBm EIRP. |
| 6 | Beam aperture: 30°. |
| 7 | Pulse width(min.):10~50µs(10kHz~2kHz) |
| 8 | Duty cycle:10% DC |
| 9 | Average current: 1.2mA typ. |
| 10 | 5 years warranty |
PIN Description:
| PIN | Name | Description |
| 1 | VCC | 5 +/- 0.25V DC |
| 2 | GND | / |
| 3 | IF Output | / |
| 4 | NC | Fix PIN |
|
|
