Fix PIN Microwave Motion Sensor Module 15mA Digital Output 5V DC High Low Voltage

Place of Origin shenzhen
Brand Name hynall
Certification CE
Model Number ANT03
Minimum Order Quantity 1000
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 4 weeks for bulk orders
Payment Terms T/T
Product Details
Digital Output 5V High Low Voltage Operation Voltage 5V DC
Operation Current 15mA Type Microwave Motion Sensor Module
Size 32.5*12*22.5mm Warranty 5 Years
High Light

High Low Voltage Microwave Motion Detector

,

Microwave Motion Sensor Module 15mA

,

Fix PIN Microwave Motion Sensor Module

Leave a Message
Product Description

Microwave motion sensor module ANT03 available for kinds of intelligent control field



Digital microwave antenna head is a multi-usage module. You can acheive the intelligent control for your products.





Quick Detail:



1. Operation temperature: -20℃-+75℃

2. Warming-up time: 20s







Description:



Super small size, customized product and serivice is always for you.





Features:



Desciption                            Sensitivity level



Low sensitivity                       25%



Medium sensitivity                  50%



High sensitivity                       75%



Test sensitivity                         100%





PIN description



PIN Name Description
1 +5V DC Input DC power +5V DC
2 GND GND
3 Output Output 5V high/low voltage or PWM
4 V-Tune Sensitivity
5 NC Fix PIN
6 NC Fix PIN

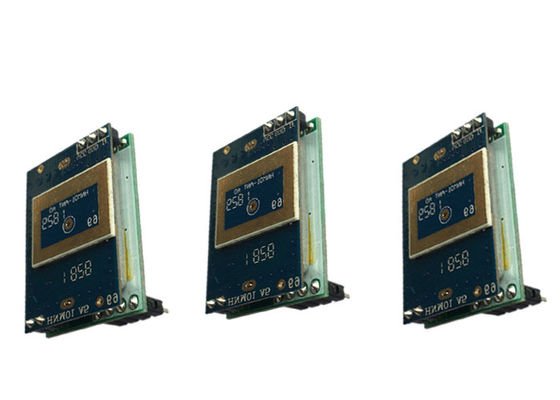

Fix PIN Microwave Motion Sensor Module 15mA Digital Output 5V DC High Low Voltage 0


Fix PIN Microwave Motion Sensor Module 15mA Digital Output 5V DC High Low Voltage 1
