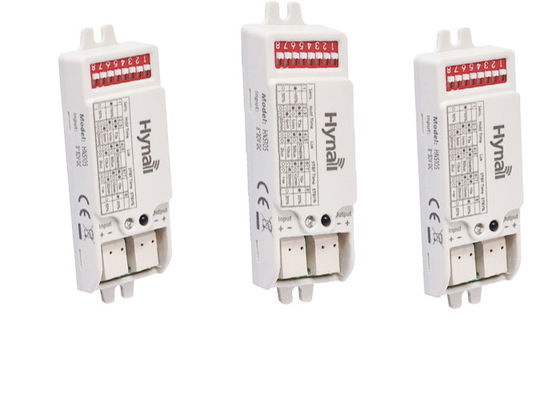

8~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver

Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS
Model Number HNS105
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 30,000pcs / month
Product Details
Input Voltage 8~30V DC Operation Temperature -20℃ ~ +70℃
Output 1.5A Max. Model HNS105
Type Microwave Motion Sensor Function Tri-level Dimming
High Light

microwave motion detector

,

microwave sensor switch

,

Microwave Motion Sensor Switch Solar System

Leave a Message
Product Description

Microwave motion senor switch, special for use with solar system or upgrade standard fixture with non-dimmable constant voltage LED driver into sensor light with dimming function







Size:



8~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver 08~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver 1



Features:

1. 8 pin DIP switch setting
2.  Rated output: 1.5A max.
3. Detection range: Up to 12m in diameter
4. Mounting height: 3~6m
5. Operation temperature: -20℃ ~ + 70℃

6. Special designed for : 1-solar system application

                                        2-low voltage halogen lamp application

7. Super small size, flexible to be integrated into any suitable fixtures.

8. Super compact, flexible to be integrated into any suitable fixtures.

9. Daylight monitoring function for built-in application.

10. RoHS compliant.







Settings:





Detection range:

can be reduced by selecting the combination on the DIP switches to fit orecisely each application.

100%, 50% for your options





Hold-time

means the time period to keep the lamp on 100% after motion detected.

T3s, 1min, 5min,20min for your options



Daylight sensor

means the daylight threshold to enable or disable the sensor function.

Disable, 50lux, 10lux,2lux for your options



Stand-by period

this is the time period that the lamp remains at low light level before it is completely switched off in the long absence of people.

10s,10min,30min, +∞ for your options



Stand-by dimming level

this is the dimmed low light level you would like to have after the hold-time in the absence of people.

20%, 50% for your options





Wiring diagram:



8~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver 28~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver 3
