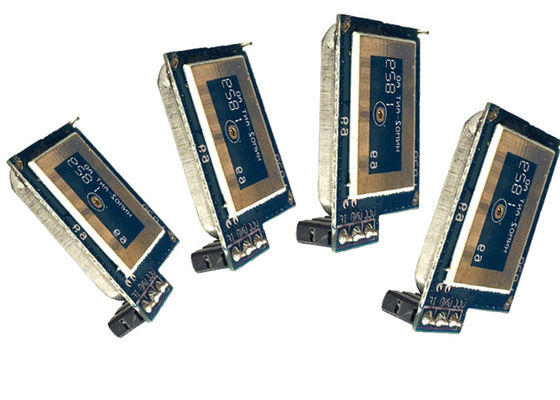

C Band Microwave Movement Sensor Module Super Compact Size Lighting IP20

Place of Origin shenzhen
Brand Name hynall
Certification RED, FCC, RoHS
Model Number HNM02
Minimum Order Quantity 1000
Price To be negotiated
Packaging Details box
Delivery Time 4 weeks
Payment Terms T/T
Supply Ability 20000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Usage Lighting Model HNM02
Size 26.5*18.5*8mm Type Microwave Motion Sensor Module
IP Rating IP20 Warranty Five Years
High Light

IP20 Lighting Microwave Sensor Switch

,

Super Compact Microwave Movement Sensor Module

,

C Band Microwave Movement Sensor Module

Leave a Message
Product Description

Microwave motion sensor module 5.8GHz C-band miniature transceiver HNM02



Perfect for the customers to design and produce their own sensor controls to fit better for their demands and bring more added values to their fixtures, at the same time save cost deeply.



Quick Details:



1. Cost efficient
2. Ultra-small size
3. Ultra-low current consumption



Features:



 1 Super compact size.
 2 5.8GHz C-band miniature transceiver.
 3

Patch antenna, antenna gain: 3 dBi.

 4 Receiver bandwidth: 1Hz ~ 2KHz.
 5 Output power 6dBm EIRP.
 6 Beam aperture: 30°.
 7 Pulse width(min.):10~50µs(10kHz~2kHz)
 8 Duty cycle:10% DC
 9 Average current: 1.2mA typ.
10 5 years warranty



PIN Description:

PIN Name Description
1 VCC 5 +/- 0.25V DC
2 GND /
3 IF Output /
4 NC Fix PIN
