Big Distance Microwave High Bay Motion Sensor Highbay / UFO Round Module DC 12V/24V

Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS
Model Number HNS106HB
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 30,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Input Voltage DC 12V/24V Input Current ≥25mA
Control Type Tri-level Dimming Control Setting IR Remote Control
Warranty 5 Years Operation Temperature -20℃ ~ +70℃
High Light

fixture mounted motion sensor


high bay occupancy sensor

Leave a Message
Product Description

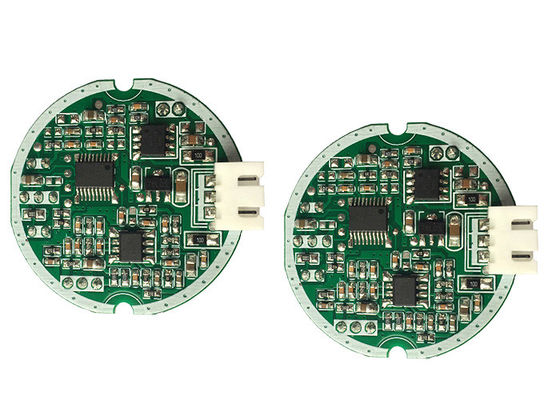

High Bay Motion Sensor green motion sensor module , 12V DC Input small size for highbay and UFO , Remote Controllable setting




Input current:≧25mA.

Super compact(∅40mm only), easily built into all kinds of highbay fixtures.

Thanks for dual-processor technology, real Daylight monitoring function for built-in application.

IR remote commissioning by setting.

Detection range: Max.18m in diameter.

Mounting height: max. 10~12m.

Operation temperature: -20℃ ~ +70 ℃

RoHS compliant.

Frequency: 5.8GHz C-band microwave
Input voltage: 12/24V DC
Output signal: 0-10V,1-10V dimming signal





Settings(by remote control IR12)--


Permanent ON/OFF function

Press ON/OFFbutton, fixture goes to permanent on or permanent off mode, sensor is disabled.

*press "Auto” ,”Reset" or “Ambient learn” to quit this mode.


Dim +/-

Press "Dim" button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved.

*after desired brightness is locked down, if user wants to dim again reversely, just press the Dim button again and then lock down the new brightness again.


Sensor mode

Press Auto button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.


Reset function

PressReset button, all settings go back to factory default settings.



Ambient learn

Press "Ambient learn" button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.


Test mode

"Test mode"is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.


Users can quit this mode by pressing "ON/OFF", "Reset' or any button of "Hold time". The sensor settings are changed accordingly.


In this mode, when used for on/off control, after motion detected, sensor enters into a cycle of 3s on and 2s off. In this mode, when used for tri-level dimming control, after motion detected, sensor enters into a cycle of 3s on and 2s off(0.5s soft off + 1.5s off).




Detection pattern--


Big Distance Microwave High Bay Motion Sensor Highbay / UFO Round Module DC 12V/24V 0



Daylight monitoring function--


Utilizing the Dual-processor technology, this sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, switch on automatically(even without movements) when the ambient light is below target value, and then switch off automatically whenever the artificial light is not required (ambient light is bright enough).
