| MOQ: | 300pcs |
| Price: | To be negotiated |
| Standard Packaging: | Bubble bag + carton. (color box or blister package also available on request) |
| Delivery Period: | 3~4 weeks for bulk orders |
| Payment Method: | T/T |
| Supply Capacity: | 30,000pcs / month |

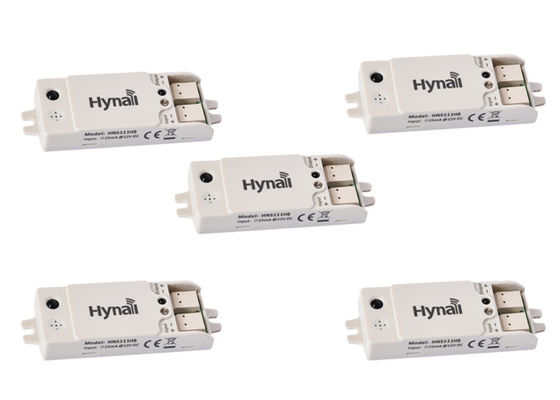

High bay motion sensor, enhanced range up to 18m in diameter available for highbay and UFO
Size: 75.1*27.1*13.8mm
Features--
5.8GHz C-band radar
Flexible to be integrated into any suitable fixtures.
Real Lux -Off & Daylight monitoring function for built-in.
IR remote commissioning.
Detection range: Max.18m in diameter.
Mounting height: 10~12m.
RoHS compliant.
| Input voltage | DC 12V |
| Input current: | ≧25mA |
| Output singal: | 1~10V dimming signal |
Settings (by remote control IR12)--
Permanent ON/OFF function
Dim +/-
Press "Dim" button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved.
Sensor mode
Press “Auto” button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.
Reset function
Press”Reset” button, all settings go back to factory default settings.
Ambient learn
Press "Ambient learn" button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.
Test mode
"Test mode"is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.
Detection pattern--
