Doppler Radar Microwave Motion Sensor Module HNM01 IP20 Patch Antenna Small Size

Place of Origin shenzhen in China
Brand Name hynall
Certification RED, FCC, RoHS
Model Number HNM01
Minimum Order Quantity 1000
Price To be negotiated
Packaging Details box
Delivery Time 4 weeks
Payment Terms T/T
Supply Ability 35000pcs
Product Details
Antenna Patch Antenna Type Doppler Radar Sensor Module
Frequency 5.8G C-band IP Rating IP20
Average Current 1.5mA Typ. Color Green
High Light

Small Size Microwave Movement Sensor

,

IP20 Microwave Motion Sensor Module

,

Patch Antenna Microwave Motion Sensor Module

Leave a Message
Product Description

HNM01 superr small size microwave motion sensor module  doppler radar sensor module



Description:



Super small size, more stable microwave motion sensor module,  perfect for being integrated with your sensor.



Features:



1.  Antenna gain: 2 dBi

2.  2 balanced mixer.

3.  Certificated: CE, FCC

4. Warranty: five years

5. Low power consumption (Pulse mode)





PIN Description:



PIN Name Description
1 VCC 5 0.25V DC
2 GND /
3 IF Output /
4 NC Fix PIN
5 NC Fix PIN

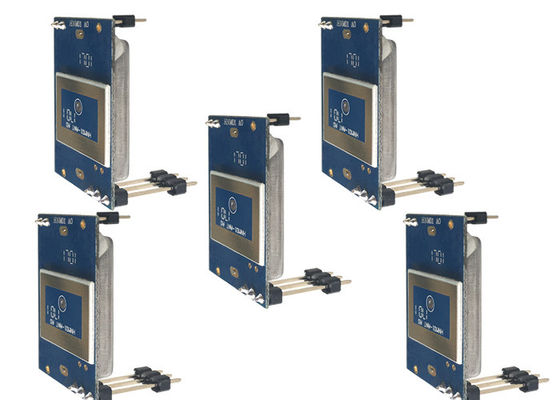

Doppler Radar Microwave Motion Sensor Module HNM01 IP20 Patch Antenna Small Size 0

Doppler Radar Microwave Motion Sensor Module HNM01 IP20 Patch Antenna Small Size 1
