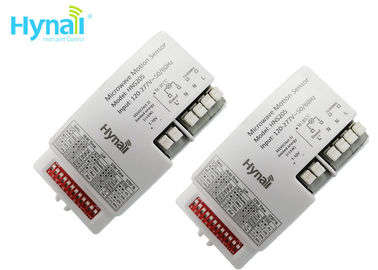

IR Remote Setting Microwave Sensor Light Switch , Detected Ceiling Light Sensor

Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS, ETL
Model Number HNS205
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 20,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 120~277V AC Type Microwave Motion Sensor
Usage Ceiling Light, Linear Light Etc. Product Name HNS205
Setting DIP Switch And IR Remote Size 102*45*26.5mm
High Light

microwave motion detector

,

microwave sensor switch

Leave a Message
Product Description

Microwave motion sensor switch motion detected white ceiling light sensor



1-10V DC dimming output, tri-level dimming control, DIP switch and IR remote for your options.



Functions: tri-level dimming control, dual daylight sensor, daylight monitoring and detached head for easy installation.


Features:

1.  Input voltage: 120〜277V AC
2. Rated load:

400W @ 120VAC (capacitive)

800W @ 200〜277VAC (capacitive)

3.  Stand-by power: <1w
4.  Detection range: Max. 12m in diameter
5. Mounting height: Max. 6m
6. Operation temperature: -20℃~ + 70℃
7. Certificated: ETL

8. 5.8GHz C-band

9. Particularly designed for fixtures which with limited space, ideal for LED panels, linear office lights with metal louvres, compact bulkheads, etc.

10. Zero-cross point operation, protect the sensor relay against the in-rush current, secure the max. load and life time of the relay.

11. DIP switch + IR Remote control 2 channels setting. Automatically override each other upon the latest operation.

12. RJ11 connection between the sensor body and antenna head, easy plug and play.





Detached sensor antennas:

IR Remote Setting Microwave Sensor Light Switch , Detected Ceiling Light Sensor 0IR Remote Setting Microwave Sensor Light Switch , Detected Ceiling Light Sensor 1




Settings (by DIP switch):



Detection range: 100%, 75%, 50%, 25%

Hold-time: T3s, 30s, 90s, 5min, 10min,30min

Daylight sensor: Disable, 50lux, 10lux, 2lux

Stand-by period: 10s, 5min,10min,30min, 1h, +∞

Stand-by dimming level: 0%, 10%, 30%, 50%





Detection pattern:

IR Remote Setting Microwave Sensor Light Switch , Detected Ceiling Light Sensor 2
