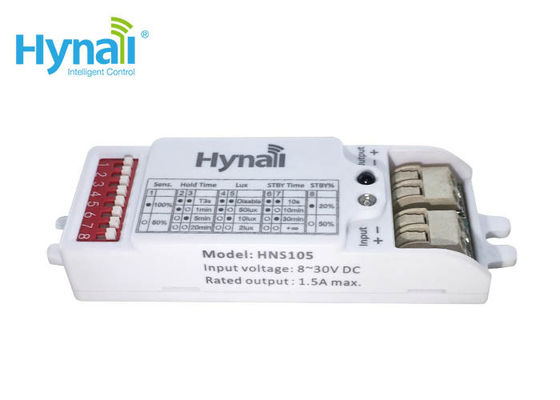

1.5A Dimmable Motion Sensor HNS105 8-30VDC Input Lighting Control

Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS
Model Number HNS105
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 30,000pcs / month
Product Details
Installation Built-in Operation Temperature -20℃ ~ +70℃
Rated Load Max.36w@24v; 18w@12v Current 1.5A Max.
Name Dimmable Motion Sensor Warranty 5 Years
High Light

1.5A Dimmable Motion Sensor

,

Dimmable Motion Sensor HNS105

,

30VDC High Frequency Motion Sensor

Leave a Message
Product Description

Dimmable motion sensor HNS105  with non-dimmable constant voltage driver to achieve dimming function





This sensor is specially designed for:



Fixture with non-dimmable constant voltage driver

Low voltage halogen lamp fixture

Solar system fixture





Features:

1. Current Up to 1.5A
2.  Rated output: 18w@12v; 36w@24v
3. Detection range: 12meter in diameter
4. Mounting height: 3~6meter
5. IP rating IP20
6 Setting DIP switch
7 Function  tri-level dimming and daylight monitoring
8 Mounting height max. 6m for ceiling mounting
