| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Hynall |
| Certification: | RED, FCC, RoHS, ETL |
| Model Number: | HNS201DC |
| Minimum Order Quantity: | 300pcs |
| Price: | To be negotiated |
| Packaging Details: | Bubble bag + carton. (color box or blister package also available on request) |
| Delivery Time: | 3~4 weeks for bulk orders |
| Payment Terms: | T/T |
| Supply Ability: | 30,000pcs / month |
| Input Voltage: | 12VDC | Stand-by Power: | ＜0.5W |
|---|---|---|---|
| Control Type: | Simple On/off And Lux Off Function | Model Name: | HNS201DC |
| Mounting Height: | Max. 6m For Ceiling Mounting, Max. 15m For Wall Mounting | Settting: | Easy Operation,DIP Switch Setting |
| High Light: | Dry Contact Microwave Motion Sensor Switch,6m Microwave Motion Sensor Switch,DIP Microwave Sensor Light Switch |
||

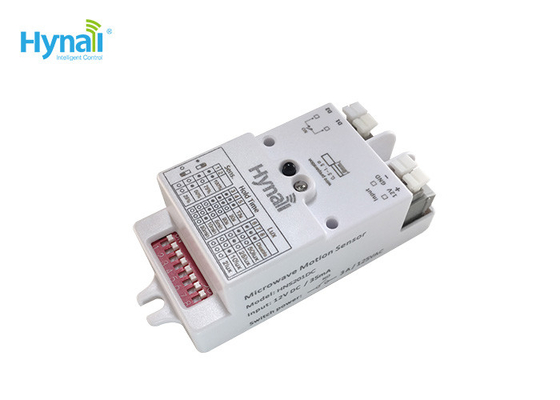

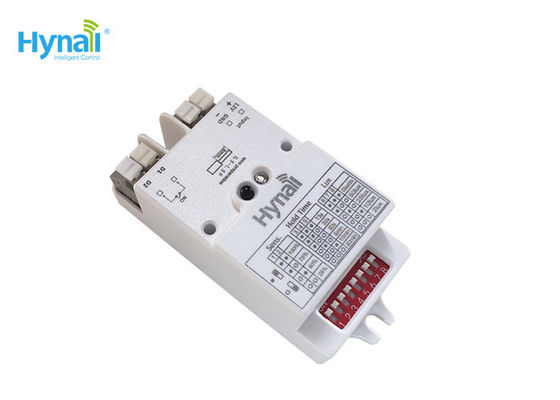

HNS201DC 12v on/off Dry Contact microwave motion sensor switch
Features
Input: 12V DC / 35mA.
Output dry contact signal: 3A 125V AC / 28VDC.
Stand-by power: <0.5w.
Dual - processor technology, real Lux-Off function for built-in application.
Detection range up to 12m diameter / Mounting height: 3~6m.
Parameters: Can be customized on requirement
| Input | DC Input Voltage | 12V |
| Output | Signal | on and off |
| Sensor Parameters | Hold time | T3s /30S/90S/5min/10min/30min |
| Detection range | 25%/50%/ 75%/100% | |
| Daylight Sensor | 2lux/10Lux/25Lux/ 50Lux / Disable | |
| Mounting Height | 6m Max. | |
| Detecting Angle | 150°(wall mounting) and 360°(ceiling mounting) | |
|
Operating Environment |
Operating Temperature | -20℃-+70℃ |
