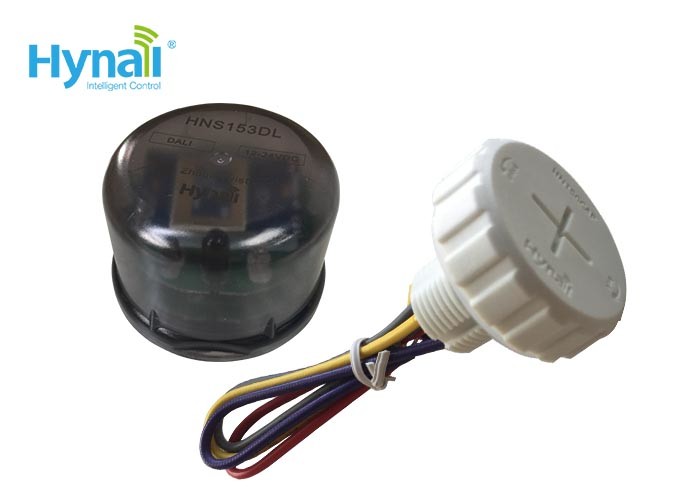

Independent DALI High Bay Motion Sensor 12m Mounting HNS153DL FCC

Independent DALI High Bay Motion Sensor 12m Mounting HNS153DL FCC

MOQ: 400pcs
Price: Negotiable
Standard Packaging: Bubble bag + carton. (color box or blister package also available on request)
Delivery Period: 4 weeks for bulk orders
Payment Method: T/T
Supply Capacity: 50,000pcs / month
Detail Information
Place of Origin
Shenzhen, China
Brand Name
Hynall
Certification
RED, FCC, RoHS
Model Number
HNS153DL
Input Voltage:
12V-24V DC
Switched Power:
Up To 60mA And 30 Devices
HF Frequency:
5.8GHz+/_75Hz
Type:
Independent DALI High Bay Motion Sensor
Detection Range:
Up To 18m In Diameter
Mounting Height:
Up To 12m For Ceiling Mounting
Highlight:

Independent DALI High Bay Motion Sensor

,

12m Mounting High Bay Motion Sensor

,

FCC Outdoor Microwave Motion Sensor

Product Description

 Model name: HNS153DL   Independent DALI dimming motion sensor



This model is a intelligent motion sensor to upgrade your project, and independent DALI broadcast will have soft dimming curve. Special design for outdoor lighting, if you do not have 12V aux. power, HND120 will be a good choice for you.



Advantage:

1.  5.8GHz frequency module, more stability.

2. Function: DALI dimming and daylight monitoring function by remote control setting

3. If you do not want the sensor function, you just need to easily remove the sensor head

    and put the cover cap on, the fixture becomes standard non-sensor control fixture.

4. Memory function with one button operation, easy operation

5. Customized service: Yes



Parameters:

Input voltage: 12V-24V DC



Input current: ≥30mA.



Detection range: max. 16~18m in diameter.

Mounting height: max.12m.



RoHS compliant.
IP rating: IP65.

Size: 50mm in diameter only, small and easy enough to be used built-in.



Intelligent photocell to measure and differentiate natural light from LED light even when used built-in.



User friendly and easy setting for IR remote commissioning.



Independent DALI High Bay Motion Sensor 12m Mounting HNS153DL FCC 0

Size:

Independent DALI High Bay Motion Sensor 12m Mounting HNS153DL FCC 1

Independent DALI High Bay Motion Sensor 12m Mounting HNS153DL FCC 2

Independent DALI High Bay Motion Sensor 12m Mounting HNS153DL FCC 3

Independent DALI High Bay Motion Sensor 12m Mounting HNS153DL FCC 4

Settings: One-key memory commissioning



Step 1: Long press“ Start” button for 2s till green LED
permanent on, then input all desired settings by
pressing the buttons in each function zone, the
green LED will flicker once to indicate the operation
success.


*After 2s, start to input the parameters, interval
time each function zone button will be within 10s.
Otherwise, need re-operate step 1 for memory
scene.

Step 2:



Press“ Memory” button to memorize all settings
parameters.





Green LED will flicker ONCE to indicate the operation success.





Step 3: Press“ Apply” button to copy the same settings to other sensors, point the remote control to the receiving sensor for min. 2s. Red LED will flicker to indicate the operation success, the receiving sensor will buzz also to indicate success receival. e.g., setting detection range 50%, daylight threshold 200lux, hold-time 30s, dim off 1h, dim level 10%, the steps should be:
1. press“ start” button for 2s, choose“ 50%”,“ 200lux”, “ 30s”,“ 1h”,“ 10%” function zone button.
2. press“ memory” button.
3. press“ apply” to other sensors, then all of them will share the same settings.





Independent DALI High Bay Motion Sensor 12m Mounting HNS153DL FCC 5Independent DALI High Bay Motion Sensor 12m Mounting HNS153DL FCC 6
