60mA High Bay Motion Sensor HNS154DL Daylight Harvest 12m Mounting

MOQ: 400pcs
Price: Negotiable
Standard Packaging: Bubble bag + carton. (color box or blister package also available on request)
Delivery Period: 4 weeks for bulk orders
Payment Method: T/T
Supply Capacity: 50,000pcs / month
Detail Information
Product Description
Detail Information
Place of Origin
Shenzhen, China
Brand Name
Hynall
Certification
RED, FCC, RoHS
Model Number
HNS154DL
Input Voltage:
12-24VDC
Switched Power:
Max. 30 Devices, 60mA
Function:
DALI Broadcast And Daylight Harvest Function
Output Signal:
DALI
Detection Range:
Max. 18m In Diameter
Mounting Height:
Up To 12m
Highlight:

60mA High Bay Motion Sensor

,

Daylight Harvest High Bay Motion Sensor

,

12m Mounting Dimming Daylight Sensor

Product Description

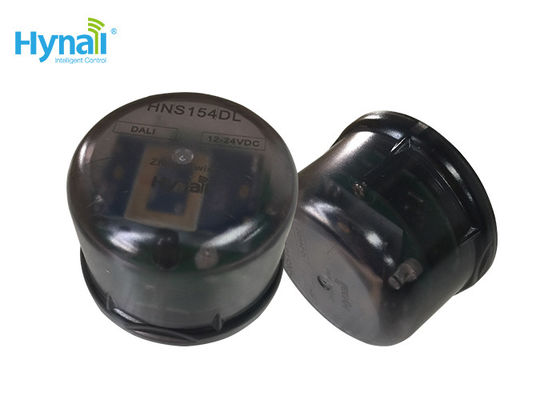

Model name: HNS154DL     independent DALI high bay motion sensor



This model is a daylight harvest and microwave motion sensor 2 in 1, and max. 12m high bay mounting height and DALI dimming output.

IP65 waterproof for outdoor lightings.



Advantage:

1. Easier operation to change the present projects, two options for you: option 1. they just need to easily remove the sensor head and put the cover cap on, the fixture becomes standard non-sensor control fixture. Option 2. want to add sensor functions, just need install the sensor head by twist lock.

2. Dual-processor daylight sensor to measure and differentiate natural light from LED light even when used built-in.

3. 3 steps to finishe memory function setting, easy operation and user friendly.

4. IR remote commissioning, easy setting and user friendly.

5. Customized service: Yes



Product Information:

5.8GHz microwave motion sensor.


Input voltage: 12V DC .
Input current: ≥30mA.



Real built-in daylight harvest function

according to dual-processor technology.

Detection range up to max. 16~18m in diameter.
Mounting height: max.12m.




Operation temperature: -20 °c ~ + 70 °c.
RoHS compliant.
IP rating: IP65.

60mA High Bay Motion Sensor HNS154DL Daylight Harvest 12m Mounting60mA High Bay Motion Sensor HNS154DL Daylight Harvest 12m Mounting60mA High Bay Motion Sensor HNS154DL Daylight Harvest 12m Mounting

Settings for IR21:

Note:
The LED indicator flickers three times when sensor successfully receives RC signal after pressing any buttons expect for“APPLY” .



When“twilight level”set at 0%, it becomes ON/OFF control.





Power Dim +/-

Press“ Power Dim +” button to dim up the power step
by step 60%-70%-80%-90%-100%.
Press“ Power Dim -” button to dim down the power
step by step 100%-90%-80%-70%-60%







Disable



Press“ Disable” button, the daylight sensor will be
disabled, the motion sensor will work always, even in
daytime.







Reset:

Press“ Reset” button, all settings go back to factory
default settings.


Factory default settings--

Sensitivity=100%
Daylight sensor=disable
Hold time=90s
Twilight time=5min
Twilight level=10%

 60mA High Bay Motion Sensor HNS154DL Daylight Harvest 12m Mounting



60mA High Bay Motion Sensor HNS154DL Daylight Harvest 12m Mounting60mA High Bay Motion Sensor HNS154DL Daylight Harvest 12m Mounting



















Tags:

high bay occupancy sensor,

fixture mounted motion sensor,

dual motion sensor
