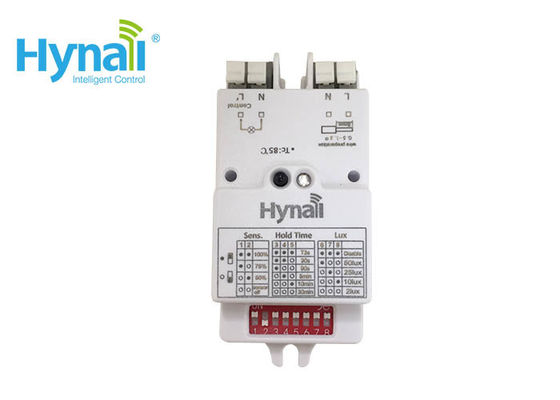

Sterilization Timer Microwave Movement Sensor Uv Lamp HNS201UV ETL

  • Sterilization Timer Microwave Movement Sensor Uv Lamp HNS201UV ETL
  • Sterilization Timer Microwave Movement Sensor Uv Lamp HNS201UV ETL
  • Sterilization Timer Microwave Movement Sensor Uv Lamp HNS201UV ETL
  • Sterilization Timer Microwave Movement Sensor Uv Lamp HNS201UV ETL
Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS, ETL
Model Number HNS201UV
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 30,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 220-240V AC( 50Hz)/ 120-277V AC (60Hz) Rated Load Max. 400W (capacitive) @ 200-277V AC
Stand-by Power ＜0.5W Control Type Off When Detecting Movement
Model Name HNS201UV Mounting Height Max. 6m For Ceiling Mounting
Operation Temperature -20℃ ~ +70℃ Settting Simple 8 Pin DIP Switch
High Light

Uv Lamp Microwave Movement Sensor

,

Sterilization Timer Microwave Movement Sensor

,

ETL Lighting Control Motion Sensor
Leave a Message
Product Description

Model name: HNS201UV     120-277V AC uv microwave motion sensor switch



This model is an intelligent control that the uv lamp will be off when detecting movement and after hold time will enter into the sterilization time.

The uv lamp will be off when finish the sterilization.







Advantage:


1. Two input voltage options: 120-277V AC/ 220-240V AC
2. Zero-cross point operation, protect the sensor relay against the in-rush current.
3. CE and ETL certification available
4. Simple DIP switch setting
5. Customized service: Yes




Product information:



Microwave motion sensor 5.8GHz C-band, off/on control and sterilization timer function
Input voltage: (EU version) 220-240V AC, 50Hz.; 120-277V AC, 60Hz.(US version).
Rated load: 500W @ 200-277VAC, (capacitive); 240W @ 120VAC, (capacitive)

!!!Stand-by power: <0.5w.
Zero-cross point operation, secure the max. load and life time of the relay .
Wall Mounting height: max. 6m and detection range up to 15m.
Warranty: 5 years
Operation temperature: -20 °c ~ + 70 °c. And RoHS compliant.



Sterilization Timer Microwave Movement Sensor Uv Lamp HNS201UV ETL 0

Sterilization Timer Microwave Movement Sensor Uv Lamp HNS201UV ETL 1

Sterilization Timer Microwave Movement Sensor Uv Lamp HNS201UV ETL 2

Sterilization Timer Microwave Movement Sensor Uv Lamp HNS201UV ETL 3
