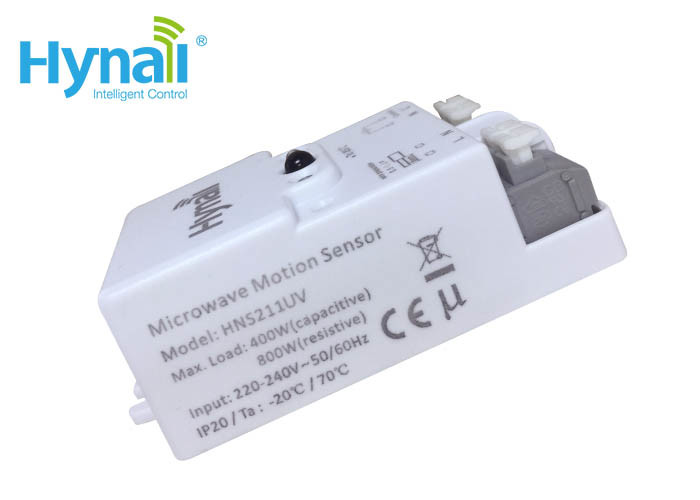

Uvc Lamp Microwave Motion Sensor Switch 277VAC HNS211UV IP20

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS, ETL
Model Number: HNS211UV
Minimum Order Quantity: 300pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 30,000pcs / month
Detail Information
Input Voltage: 60Hz 120-277V AC & 50Hz 220-240V AC Rated Load: Capacitive Up To 400W
Stand-by Power: <0.5W Control Type: Sterilization Timer And Off When Human Detect
Detection Range: Up To 15m For Wall Mounting Mounting Height: 3-6m For Ceiling
Operation Temperature: -20℃ ~ +70℃ IP Rating: IP20
High Light:

Uvc Lamp Microwave Motion Sensor Switch

,

277VAC Microwave Motion Sensor Switch

,

IP20 Motion Sensor Light Switch


Product Description

Model name: HNS211UV          AC input UV lamp microwave motion sensor switch



This model is  a uv lamp motion sensor, and special design for them. Easy opetation and simple remote control setting

A simple uv sensor with off/on and sterilization timer function, remote control setting, user friendly and easy operation.

Small size and remote control setting will be better for end user based on safety and operation.



Advantage:



1. The uv lamp is off when detecting movement, and after hold time, the light is on for sterilization in the period of sterilization time.

     After that, the uv lamp will be off.
2. Remote control setting, more safer and saving the time.
3. Customized service: YES




Product information:

Input voltage :

220-240V AC, 50Hz.(EU version)

120-277V AC, 60Hz.(US version).

Rated load:

200W @ 120V AC, (capacitive)

400W @ 200-277V AC, (capacitive).

Detection range: max. 12 in diameter for ceiling, and max. 15m for wall





Parameters: Can be customized on requirement

Operation voltage  AC Input  US 120-277VAC  & EU  220-240V AC on requirement
Output signal standard version
Parameters 1. Hold time T10s /1min/5min/10min/30min customer's requirement
2. Sensitivity 25%/50%/ 75%/100% on requirement
3. Sterilization timer 5min/15min/30min/ 60min/ disable  on requirement
4.Mounting Height 3~6m



Uvc Lamp Microwave Motion Sensor Switch 277VAC HNS211UV IP20 0

Uvc Lamp Microwave Motion Sensor Switch 277VAC HNS211UV IP20 1

Uvc Lamp Microwave Motion Sensor Switch 277VAC HNS211UV IP20 2

Uvc Lamp Microwave Motion Sensor Switch 277VAC HNS211UV IP20 3
