Product Details
Input Voltage 220~240VAC/ 90-120V AC Protections Over Load Protection Ans Over-heat Protection
Usage Special Design By Trailing Edge Technology Model HNT205
Function Tri-level Dimming Control Size 102*45*26.5mm
High Light

Edge Dimming Microwave Motion Sensor Switch

,

Trailing Microwave Motion Sensor Switch

,

240VAC Microwave Sensor Light Switch
Leave a Message
Product Description

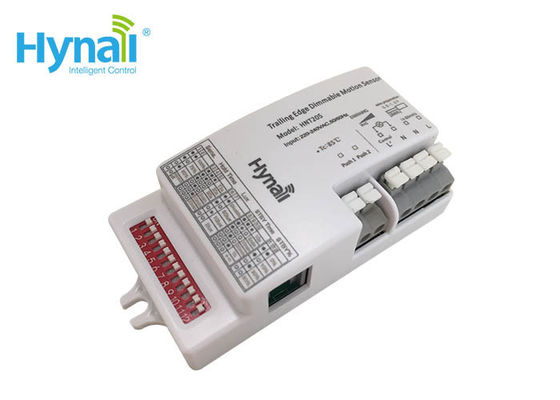

Model name: HNT205    Trailing edge microwave motion sensor switch



This model is a particular design for retrofit purpose on trailign edge teconology based on fixtures, AC LED lamps, AC halogen
lamps, etc. Convert / upgrade easily existing fixtures into intelligent motion sensor control without extra change, at the same time,

Push-Dim function acquired.



Advantage:



1. Trailing edge dimming and Push Dim two options

2. DIP switch setting and remote control setting two options

3. Easy shift between “sensor mode” and “sensor off mode”, to fit for different demands.

4. Customized service: YES





Product information:


1. Input voltage: 220-240V AC  & 90-120V AC
2. Rated load:

Capacitive 150W & Resistive  200W
3. Stand-by power: <1w
4. Over-heat protection:  80%-50%-10%-OFF
5. Over-load protection: automatically shut off when load ≥300w
6. Detection range: Max. 12m in diameter for ceiling and 15m for wall
7. Mounting height: 3~6m
8. Operation temperature: -20℃~ + 70℃
9. Color: White



Edge Dimming Microwave Motion Sensor Switch HNT205 Trailing 240VAC 0

Structure and Size:

Edge Dimming Microwave Motion Sensor Switch HNT205 Trailing 240VAC 1

Edge Dimming Microwave Motion Sensor Switch HNT205 Trailing 240VAC 2

DIP switch setting:

Detection range



It can be reduced by selecting the combination on the DIP switches to fit precisely each application.


* when detection range set as “sensor off”, this sensor becomes then a pure trailing edge dimmer with push-dim function, no matter with or without the detached antenna head ANT01/ANT02.



Hold-time



That is the time period to keep the lamp on 100% after motion detected.


* when hold-time set as 3s, sensor enters into test mode, this test mode is mainly for users to choose the desired detection range. In this mode, the daylight sensor is disabled, when there is no
motion, fixture keeps off, when there is motion detected, fixture keeps a cycle of 3s on and 2s off.



Daylight sensor



The daylight threshold to enable or disable the sensor function.


“Disable”: The sensor works always, even during daylight.
“50lux”: The sensor works only in twilight.
“10lux, 2lux”: The sensor works only in the dark



Stand-by period



This is the time period that the lamp remains at a low light level before it is completely switched off in the long absence of people



“+∞ ”: means bi-level dimming control, the fixture never switch off.





Stand-by dimming level


This is the dimmed low light level you would like to have after the hold-time in the absence of people.


* 0% means on/off control.



Edge Dimming Microwave Motion Sensor Switch HNT205 Trailing 240VAC 3

Edge Dimming Microwave Motion Sensor Switch HNT205 Trailing 240VAC 4
