Daylight Monitoring Dimmable Motion Sensor RF Wireless Grouping Tunable White

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS, ETL
Model Number: HNS117RF
Minimum Order Quantity: 300pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 30,000pcs / month
Detail Information
Input Voltage: Standard 12V DC, Customized Version 24V DC RF Frequency:: Two Options 915MHz / 868MHz
RF Transmission Distance: In Open Area Max. 50m IP Rating: IP20
Usage: Car Parking, Hotel, Corridor Etc. Product Name: Dimmable Motion Sensor
Warranty: 5 Years Size: 73.1*33*15.6mm
High Light:

Daylight Monitoring Dimmable Motion Sensor

,

RF Wireless Grouping Dimmable Motion Sensor

,

Tunable White Motion Sensor Dimmer Switch


Product Description

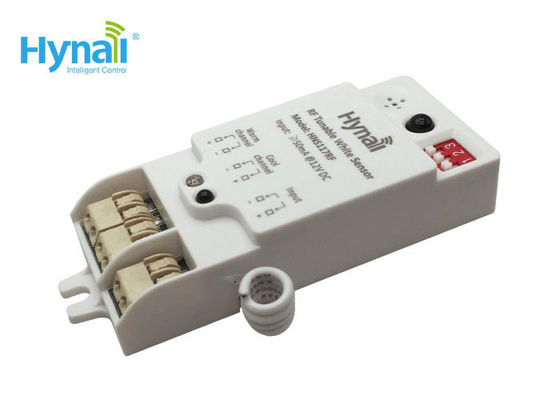

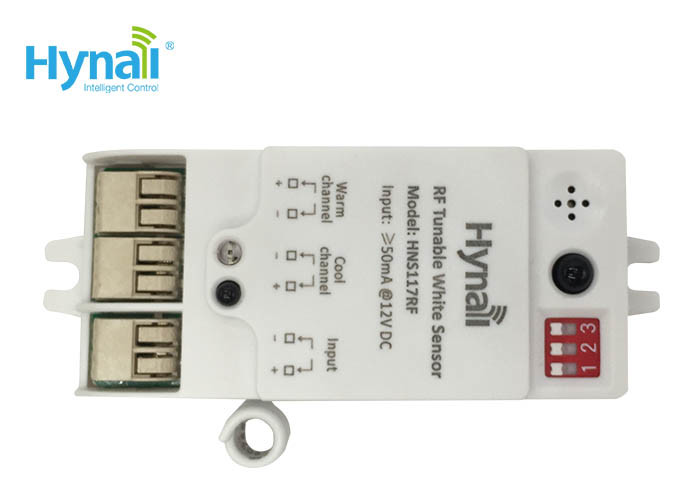

Model name: HNS117RF          Low voltage dimmable motion sensor



This model is a multiple-function sensor, and  3 in 1 including 5.8G microwave motion sensor, daylight sensor and tunable white CCT adjustment.




Advantage:
1. Tunable white, RF wireless grouping, 0-10v dimming and daylight monitoring
2. RF wireless grouping setting: Easy setting by DIP switch; Intelligent grouping by RC remote control
3. CCT adjustment: DIP switch setting, and warm, White, Cool three options
4. Customized service: Yes





Product information:

Input voltage:12V DC ; Input current: more than 50mA
Detection range for ceiling mounting: max. 12m in diameter; Mounting height: Up to 6m
RF transmission distance : in open area max. 50m; Output: 0-10v dimming
Ideal for retrofit project / parking garage / staircase / corridor applications
Color temperature adjustment: Warm, White, Cool by DIP switch setting
IP rating: IP20



Daylight Monitoring Dimmable Motion Sensor RF Wireless Grouping Tunable White 0Daylight Monitoring Dimmable Motion Sensor RF Wireless Grouping Tunable White 1

Daylight Monitoring Dimmable Motion Sensor RF Wireless Grouping Tunable White 2Daylight Monitoring Dimmable Motion Sensor RF Wireless Grouping Tunable White 3

Daylight Monitoring Dimmable Motion Sensor RF Wireless Grouping Tunable White 4

Application:

Daylight Monitoring Dimmable Motion Sensor RF Wireless Grouping Tunable White 5
