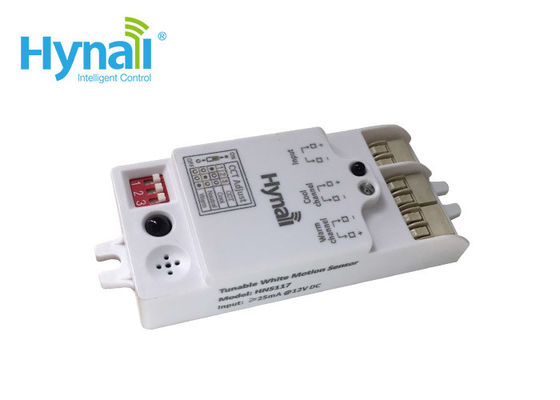

HNS117 CCT 0 - 10V Dimming Dimmable Motion Sensor Low Voltage 12V Microwave Sensor

  • HNS117 CCT 0 - 10V Dimming Dimmable Motion Sensor Low Voltage 12V Microwave Sensor
  • HNS117 CCT 0 - 10V Dimming Dimmable Motion Sensor Low Voltage 12V Microwave Sensor
  • HNS117 CCT 0 - 10V Dimming Dimmable Motion Sensor Low Voltage 12V Microwave Sensor
Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS, ETL
Model Number HNS117
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 30,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input 12-24V DC Customized Available Input Current ≥25mA
Usage Troffer, Ceiling Light, Tri-proof Lightings Function CCT, Daylight Monitoring And 0-10V Dimming
CCT Quick Selection Three Color Temperature Including Cool, Neutral And Warm Setting DIP Switch For CCT And Remote Control For Setting The Sensor
High Light

CCT Dimmable Motion Sensor

,

DIP switch Dimmable Motion Sensor

,

Dimmable 12V Microwave Sensor
Leave a Message
Product Description

HNS117 Quick detail of Low Voltage Motion Sensor


1, Tunable white low voltage motion sensor

2, Two channels output 0~10V / PWM signal, achieve color temperature adjustments.

3, IR remote commissioning, easy setting and user friendly.

4, Detection range up to 12m in diameter.

5, By default, the lights automatically turn off after 30 seconds, according to the actual needs of customers to order





Description of Low Voltage Motion Sensor



12V DC Low Voltage Motion Sensor is a wired Mcirowave & Daylight detector. It adopts advanced technology in signal processing, and provides an excellent detection ability. When an intruder enter into the detecting area, an infrared heating signal, received by the Fresnel lens, would be sent out and focused on the infrared sensor. After compare, analysis and calculation by a microprocessor, it would output an accurate alarm signal.Super compact, flexible to be integrated into any suitable fixtures. Easy access by DIP switch to shift between cool, white and warm





Specification of Light Motion Sensor



detection method Dual microwave + Daylight
detecting range Max. 12m in diameter
installation Max. 6m height (on wall or corner mounted)
working voltage 12V-24V DC
working current ≥25mA
working environment -20°C~+70°C
dimension 86*33*15.6mm
function 0-10v dimming and daylight monitoring, CCT
CCT Cool, white, warm
Setting Remote control





Function Performance of the light motion sensor


1. OCC OFF function

Press “OCC OFF” button, the motion sensor will be disabled.

*press “OCC ON” , “Reset” or “Ambient” to re-activate the motion sensor.



2. Dim from 10% - 100%

Press “Dim” button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved. After desired brightness is locked down, if user wants to dim again reversely, just press the “Dim” button again and then lock down the new brightness again.



3. Test
The lamp will be turn 100% on for about 3 seconds if the movement is detected and the ambient light is disable





Application of Light Motion Sensor



Light Motion Sensor is ideally suited to circulation areas, store rooms, common stairs wells or corridors where there are are frequently people passing in an out of an area and the lighting often gets left on all day. Payback is the time it takes for an investment in energy conservation to repay its cost in energy savings. All our microwave motion sensor have CE marking and have a 5 years warranty.



Application of ON/OFF motion sensor:



1. Automatically ON/OFF function:



  With sufficient daylight,even when motion detected,light remains OFF.
  With insufficient daylight,when motion detected,light ON.
  After the last detection,and the present hold time elapsed,light OFF.



2. No daylight function

When the daylight threshold is set to "Disable".

Light on when detect movement, After people leave, Light off after stand-by period.





Applications: Dim places such as Basement Parking, Underpass.



  When motion is detected, the sensor will switch on the light to 100% brighteness.
  After people leave the detection area, light remains 100% brightness within hold time.
  After the last detection and the present hold time elapsed, light OFF.

HNS117 CCT 0 - 10V Dimming Dimmable Motion Sensor Low Voltage 12V Microwave Sensor 0

HNS117 CCT 0 - 10V Dimming Dimmable Motion Sensor Low Voltage 12V Microwave Sensor 1



Why Choose US:



1. We own strong R & D ability for new products and customizing service

-- light motion sensor function design/ shell design

2. Strict quality control system which enhances customers' competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC


FAQ:



Q1. What is the biggest difference between your sensor and other suppliers:

A: Professional customer service and intelligent solution provider



Q2. How about your Motion Sensor delivery time?

A: 1-25 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q3: How about your warranty?

A: 5years warranty
