HNS133PIR 12v Pir Motion Sensor 0 - 10v Dimmable Daylight Lux On For LED Panel / Troffer

Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS
Model Number HNS133PIR
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 50,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Input Voltage +12V-24V DC Input Current ≥8mA
Usage Troffer, Led Panel Etc. Indoor Lighting Product Name HNS133PIR
Size 67*14*15.5mm Operation Temperature -20℃ ~ +70℃
High Light

Hynall pir motion sensor


Dimmable pir motion sensor


Daylight Lux On 12v pir sensor

Leave a Message
Product Description

HNS133PIR Quick detail of dimmable pir sensor

1, 0-10v tri-level dimming control and daylight lux on function

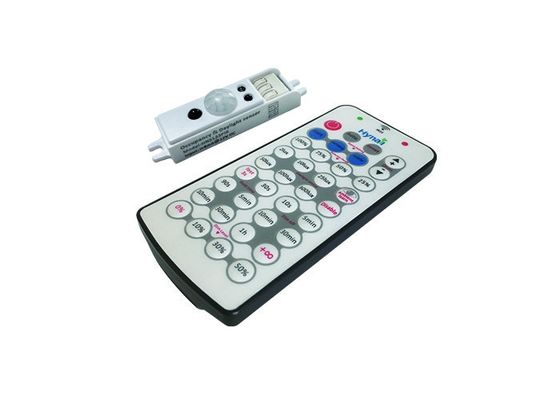

2, IR remote commissioning, easy setting and user friendly

3, Memory function with one button commissioning

4, By default, the lights automatically turn off after 30 seconds on requirement



Description of dimmable pir sensor


Dimmable pir sensor is a wired PIR & Daylight detector. It adopts advanced PIR and daylight technology in signal processing, and provides an excellent detection ability. You can get the multiple functions sensor. Save cost and easy making the structure.


Specification of dimmable pir sensor


Detecting method PIR & lux on
Detecting distance About 6m
Detecting angle 110 °
Mounting height 3-4m for ceiling mounting
Input voltage 12V-24V DC normal version
Output signal Generally 0-10v, can customized PWM
Operation environment -10°C~+50°C


Function Performance

1. One-key memory commissioning

  •  Step 1:

Long press “Start” button for 2s till green LED permanent on, then input all desired settings by pressing the buttons in each function zone, the green LED will flicker once to indicate the operation success.

*After 2s, start to input the parameters, interval time each function zone button will be within 10s.Otherwise, need re-operate step 1 for memory scene.

  • Step 2

Press “Memory” button to memorize all settings parameters. Green LED will flicker ONCE to indicate the operation success


  • Step 3

Press “Apply” button to copy the same settings to other sensors, point the remote control to the receiving sensor for min. 2s. Red LED will flicker to indicate the operation success, the receiving sensor will buzz also to indicate success receival.

e.g., setting detection range 50%, daylight threshold 200lux, hold-time 30s, dim off 1h, dim level 10%, the steps should be:


1. press “start” button for 2s, choose “50%”, “200lux”, “30s”, “1h”, “10%” function zone button.

2. press “memory” button.

3. press “apply” to other sensors, then all of them will share the same settings.

HNS133PIR 12v Pir Motion Sensor 0 - 10v Dimmable Daylight Lux On For LED Panel / Troffer 0HNS133PIR 12v Pir Motion Sensor 0 - 10v Dimmable Daylight Lux On For LED Panel / Troffer 1


Application of 12v pir motion sensor

  • Hotel rooms
  • Office
  • Rooms
  • Parking
  • Corridor


Advantage of dimmable pir sensor


HNS133PIR special design is for linear light, LED panel, troffer, etc. It is 0-10v dimming for single light without lighting system. Super compact size and multiple functions are the advantage for the PIR sensor.
