HNS135PIR Min PIR Motion Sensor Remote Control Setting 12V Low Voltage

Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS
Model Number HNS135PIR
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 50,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Working Voltage 12V -24V DC Low Voltage Input Current ≥8mA Low Power Consumption
Usage Linear Light, LED Panel, Troffer Etc. Detection Range Max. 5m
Size 71.4*19*15.4mm Operation Temperature -10℃ ~ +50℃
High Light

Min PIR Motion Sensor


Dimmable Motion Sensor 12V


Silvair bluetooth Dimmable Motion Sensor

Leave a Message
Product Description

HNS135PIR Quick detail of mini pir motion sensor


1, Unique installation way, and only make a square hole and press the sensor into the hole.

2, Bi-level / tri-level dimming & lux on function by remote control setting

3, Memory function with one button commissioning via blue buttons of the remote control

4, Special design for troffer and led panel light, if you want to get bluetooth mesh function, customized service is available



Description of mini pir motion sensor


Mini pir motion sensor is a wired PIR & Daylight sensor. The infrared sensor is used to filter out the light sensor, and the light sensitivity value is more accurate, and is not affected by cloudy and sunny days.


Specification of mini pir motion sensor


Small size 71.4*19*15.4mm
Detecting range ~6m
Mounting height 2.5-4m
Input voltage 12V-24V DC low voltage
Output signal 0-10v for standard version
Operation environment -10°C~+50°C


Function Performance


“Test mode” is for testing purpose only, for users to check the functionality and choose the desired detection range.

The sensor goes to test mode automatically after pressing this button. Users can quit this mode by pressing “ON/OFF”, “Reset”,

or any button of “Hold time”. The sensor settings are changed accordingly.


Test mode defaulted settings--

Daylight sensor=disable

Hold time=3s

Twilight time=N/A

Twilight level=N/A


In this mode, when used for on/off control, after motion detected, sensor enters into a cycle of 3s on and 2s off.

In this mode, when used for tri-level dimming control, after motion detected, sensor enters into a cycle of 3s on

and 2s off (0.5s soft off + 1.5s off).

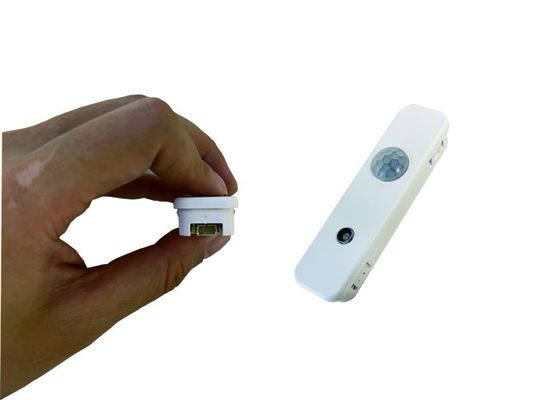

HNS135PIR Min PIR Motion Sensor Remote Control Setting 12V Low Voltage 0

HNS135PIR Min PIR Motion Sensor Remote Control Setting 12V Low Voltage 1


Advantage of mini pir motion sensor


Many customers are pained to add intelligent saved energy solution for led panel and troffer etc. Indoor lighting all the time. HNS135PIR design resolves this problem. Only one hole will easily finish assembling the PIR sensor.


Why Choose Us:


1. R&D strength: publish new items per 2 months,10+ year experience,alomost 100% success rate
2. Sales strength: Professional sales,long term after-sale service promised.
3. Complete&strict QC system many years experienced officers,complete QN system including IQC,IPQC,FQC,QN AND QE
4. Product quality Under 0.1% defected rate. 5 years warranty
5. Certification: CE,ROHS, ETL, FCC, RED
7. OEM/ODM ability: Over 5 years OEM/ODM experience







We have our own factory, with 10 eng. can design and make as request.



Yes, sample fee will be refunded to you when you place large order.



We usually use international express send products to customer, such as: Fedex, TNT, UPS, DHL, SF, EMS etc.
