HNS133PIR 12V PIR Motion Sensor 0 - 10v Dimmable Daylight Lux On For LED Panel / Troffer
|Place of Origin||Shenzhen, China|
|Certification||RED, FCC, RoHS|
|Minimum Order Quantity||300pcs|
|Price||To be negotiated|
|Packaging Details||Bubble bag + carton. (color box or blister package also available on request)|
|Delivery Time||3~4 weeks for bulk orders|
|Supply Ability||50,000pcs / month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Input Voltage||+12V-24V DC||Input Current||≥8mA|
|Usage||Led Panel Etc. Indoor Lighting||Product Name||Pir Motion Sensor|
|Size||67*14*15.5mm||Operation Temperature||-20℃ ~ +70℃|
Lux On 12V PIR Motion Sensor,
10v Dimmable 12V PIR Motion Sensor,
Troffer 12 volt pir motion sensor
HNS133PIR Quick detail of dimmable pir sensor
1, 0-10v tri-level dimming control and daylight lux on function

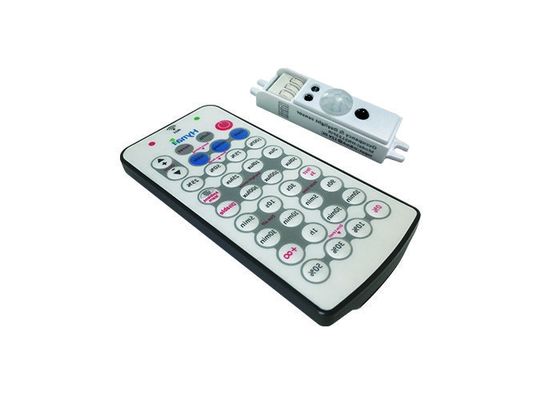

2, IR remote commissioning, easy setting and user friendly
3, Memory function with one button commissioning
4, By default, the lights automatically turn off after 30 seconds on requirement
Description of dimmable pir sensor
Dimmable pir sensor is a wired PIR & Daylight detector. It adopts advanced PIR and daylight technology in signal processing, and provides an excellent detection ability. You can get the multiple functions sensor. Save cost and easy making the structure.
Specification of dimmable pir sensor
|Detecting method||PIR & lux on|
|Detecting distance||About 6m|
|Detecting angle||110 °|
|Mounting height||3-4m for ceiling mounting|
|Input voltage||12V-24V DC normal version|
|Output signal||Generally 0-10v, can customized PWM|
1. One-key memory commissioning
- Step 1:
Long press “Start” button for 2s till green LED permanent on, then input all desired settings by pressing the buttons in each function zone, the green LED will flicker once to indicate the operation success.
*After 2s, start to input the parameters, interval time each function zone button will be within 10s.Otherwise, need re-operate step 1 for memory scene.
- Step 2
Press “Memory” button to memorize all settings parameters. Green LED will flicker ONCE to indicate the operation success
- Step 3
Press “Apply” button to copy the same settings to other sensors, point the remote control to the receiving sensor for min. 2s. Red LED will flicker to indicate the operation success, the receiving sensor will buzz also to indicate success receival.
e.g., setting detection range 50%, daylight threshold 200lux, hold-time 30s, dim off 1h, dim level 10%, the steps should be:
1. press “start” button for 2s, choose “50%”, “200lux”, “30s”, “1h”, “10%” function zone button.
2. press “memory” button.
3. press “apply” to other sensors, then all of them will share the same settings.
Application of 12v pir motion sensor
- Hotel rooms
Advantage of dimmable pir sensor
HNS133PIR special design is for linear light, LED panel, troffer, etc. It is 0-10v dimming for single light without lighting system. Super compact size and multiple functions are the advantage for the PIR sensor.
