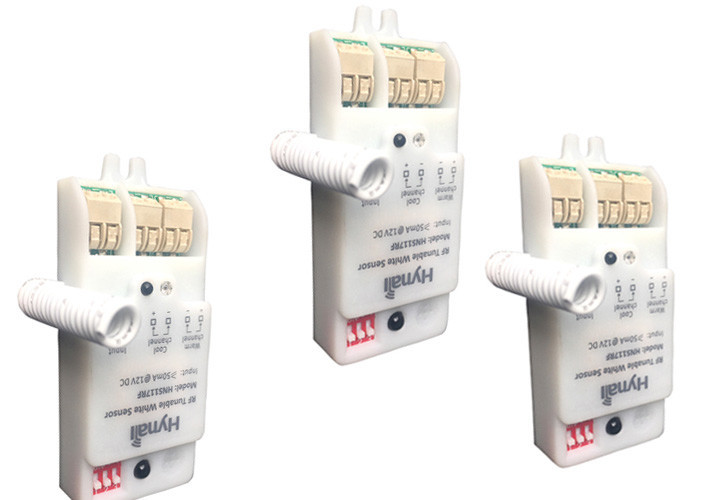

0-10V/PWM Dimmable Motion Sensor Integrated RF Wireless Tunable White

  • 0-10V/PWM Dimmable Motion Sensor Integrated RF Wireless Tunable White
Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS, ETL
Model Number HNS117RF
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 30,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
RF Frequency FSK 915MHz RF Transmission Distance Max. 50m In Open Area
Output Signal 0-10V/PWM Signal RF Grouping Setting DIP Switch And Remote Control
Product Name Dimmable Motion Sensor Warranty Five Years
High Light

cluster control Dimmable Motion Sensor

,

FSK 915MHz Dimmable Motion Sensor

,

RF Wireless dimmable occupancy sensor
Leave a Message
Product Description

12V/24V DC input dimmable motion sensor, integrated RF wireless, tunable white, tri-level dimming and remote control







Quick Detail:



1. Dual-processor technology, real Lux-off & daylight monitoring function for built-in application

2. RF wireless cluster control. ideal for retrofit project/ parking garage / staircase / corridor applications, easy installation, free of wiring

3. Two channels output, achieve color temperature adjustment and tri-level dimming





Size: 86*33*15.6mm







Features:



1.  Input current: ≥50mA
2. Operation temperature: -20℃~+70℃
3. Detection range up to 12m in diameter
4. IR remote commissioning
5. Mounting height: 3〜6m
6. RoHS compliant
7. IP rating: IP20

Source current / Sink current: Max. 20mA; 0-10V leads can not be short-circuit.



Features:


Low power consumption, power-saving.
Detect distance, ambient light and time-delay are adjustable, you can make your own setting.
Microwave Radar Sensor, 360° wide angle detection and further detection distance, can penetrate glass and veneer, but not wall.
Pluggable type of the terminals which make easier and much convenient to install.
Applicable to monitoring equipment, warning facility, LED lamp, fluorescent lamp, incandescent lamp, ventilator and magnetic valve and so on.
Well suited to circulation areas, integral garages, store rooms, toilets, kitchens, common stairs wells or corridors where there are frequently people passing in an out of an area and the lighting often gets left on accidentally.
Can be installed on wall, ceiling and anywhere of your house.



Remote control setting:



OCC OFF
Press “OCC OFF” button, the motion sensor will be disabled.

press “OCC ON” , “Reset” or “Ambient” to re-activate the motion sensor.

Dim
Press “Dim” button to automatically dim up or down the light brighness during hold-time from 10% to 100%.

Another press to lock it down whendesired brightness is achieved.



                                                                                                                                                 0-10V/PWM Dimmable Motion Sensor Integrated RF Wireless Tunable White 0





OCC ON
Press “OCC ON” button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on / off.


Reset function
Press “Reset” button, all sensor settings go back to factory default settings.



Ambient learn
Press the button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.





Test mode
“Test mode”is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.

Users can quit this mode by pressing “ON/OFF”, “Reset”, or any button of “Hold time”. The sensor settings are changed accordingly .



0-10V/PWM Dimmable Motion Sensor Integrated RF Wireless Tunable White 1





Fast RF Grouping ( via DIP switch)

By simply selecting the same channel on each sensor unit, the grouping is quickly and automatically completed. Totally
7 channels are available for fast grouping.
Channel OFF - OFF - OFF is not for fast grouping, it is for remote control grouping only.
